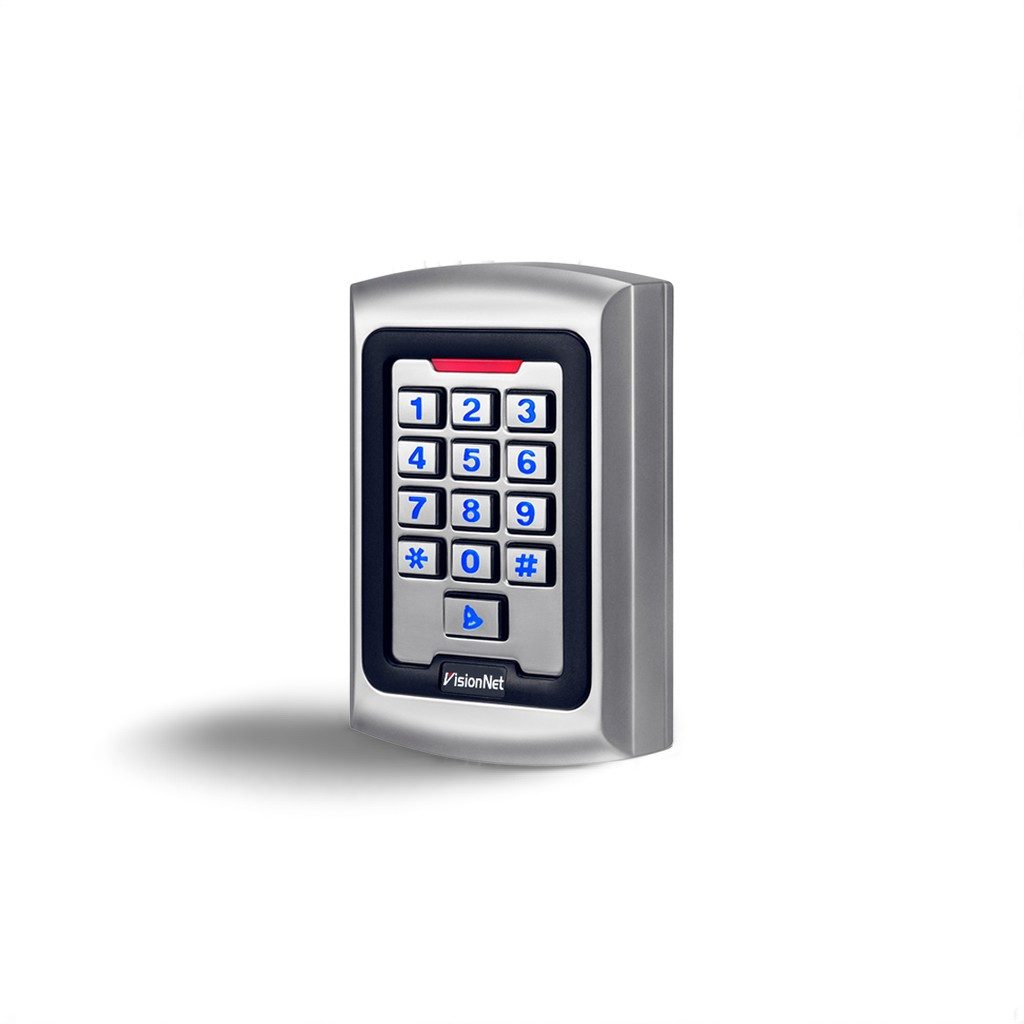

בקר כניסה K5-EM לתנאי חוץ קודן משולב כרטיס קרבה
בקר כניסה K5-EM לתנאי חוץ קודן משולב כרטיס קרבה
מחיר רגיל
280.00 NIS
מחיר רגיל
מחיר מבצע
280.00 NIS
כמות
לא ניתן לטעון זמינות לאיסוף
- Strong Zinc Alloy Electroplated anti-vandal case
- Indoor use
- Full programming from the keypad
- 2000 uses, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time, Alarm time, Door Open time
- Very low power consumption – 30mA
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in light dependent resistor (LDR) for anti tamper
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
Specifications
| Operating Voltage | 12V DC |
| User Capacity | 2000 |
| Card Reading Distance | 3-6cm |
| Active Current | <60mA |
| Idle Current | 25±5mA |
| Lock Output Load | Max 3A |
| Alarm Output Load | Max 20A |
| Operating Temperature | 45~60 |
| Operating Humidity | 10%- 90% RH |
| Adjustable Door Relay time | 99-0seconds |
| Adjustable Alarm Time | 3-0minutes |
| Wiegand Interface | Wiegand 26 bit |
| Wiring Connections | Electric Lock, Exit Button,, External Alarm |
| Dimensions | L120 x W80x H25 mm |
