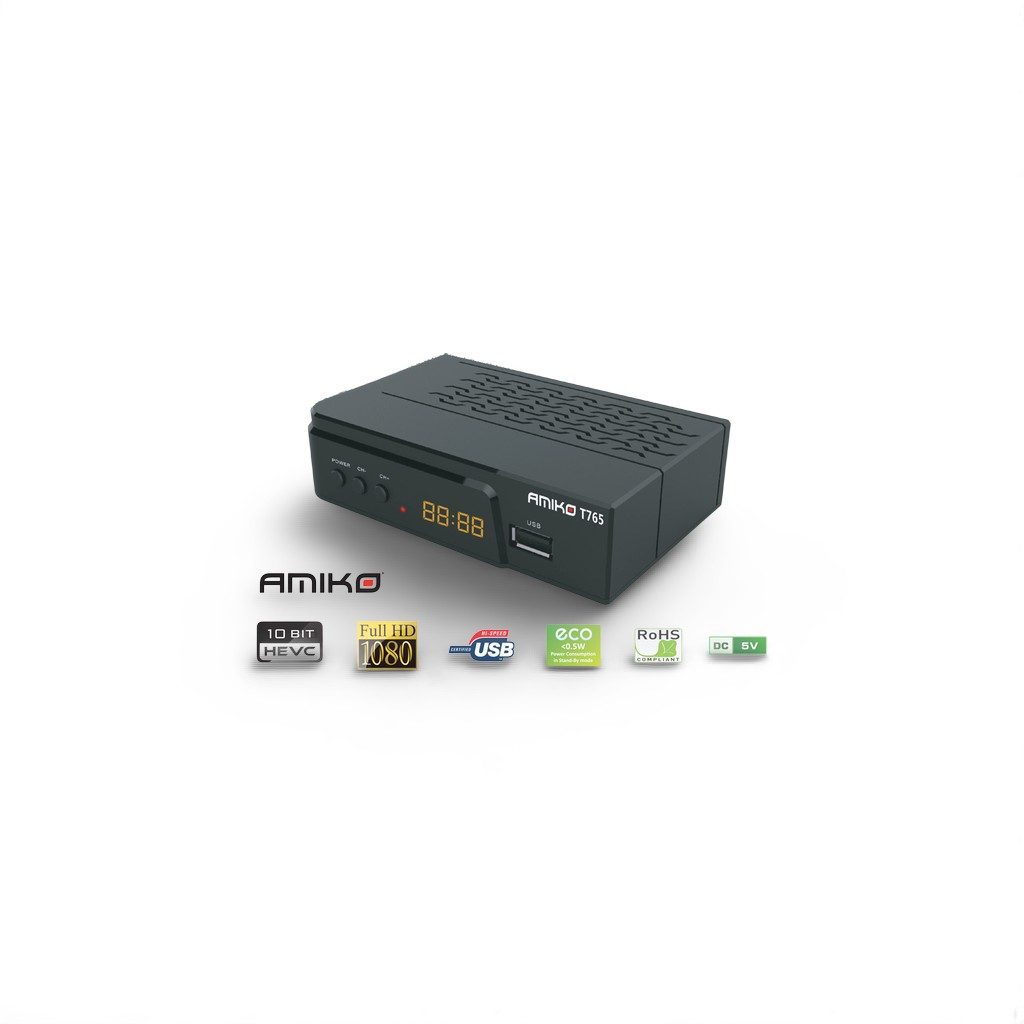

ממיר לווין מקלט AMIKO T765 H.265 HEVC DVB-T מקלט

High Speed USB 2.0 Connection Support

TimeShifting Support

MKV, AVI, MPG, MP4, TS, VOB, JPEG & MP3

Playback Support

Software Upgrade via USB

Dolby Digital Bit-Stream out via HD OUT

Low Power Consumption in Stand-By

 Next

Tuner & Demodulation

Tuner Type: DVB-T2

Frequency Range: 108MHz~862MHz

RF Input Level: “-80dBm to -20dBm”

Antenna power output: DC 5V at max 75mA, Overload protection

Demodulation: COFDM 1K, 2K, 4K, 8K normal

and extended, 16K normal and extended,

32K normal and extended

Input Symbol Rate: 1.0 ~ 7.0Ms/s

Constellations: QPSK, 16QAM, 64QAM

Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

MPEG TS A/V Decoding

Transport Stream: 10 bit HEVC

Input Rate: Max.120Mbit/s

Aspect Radio: 4:3, 16:9, Letter Box

Video Decoding: MPEG-2, MP@ML, MPEG-4

Video Resolution: 720*480p/i, 720*576p/i,1280*720p, 1920*1080p/i

Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital

Audio Mode: Left / Right / Stereo/ Mono

Sampling Rate: 32, 44.1 and 48KHz

System Resources

Main Processor: 594 MHz based CPU

Flash Memory: 32MBits

DDR RAM: 512Mbits

A/V & Data Input/Output

USB: One USB 2.0 slot Compatible

Digital Video Output

SCART: CVBS Video & Audio L/R output

Physical Specifications

Size[W*H*D]: 130mm*65mm*30mm

Net Weight: 0.10 Kg

Operation Temperature: 0°C~+45°C

Storage Temperature: -10°C~+70°C

Storage Humidity: 5%~95% RH (Non-Condensing)
