CVBS 5×5 מיני אבטחת CCTV מצלמה 800tvl CMOS 12X12mm בית וידאו אודיו אנלוגי מצלמה AV פלט

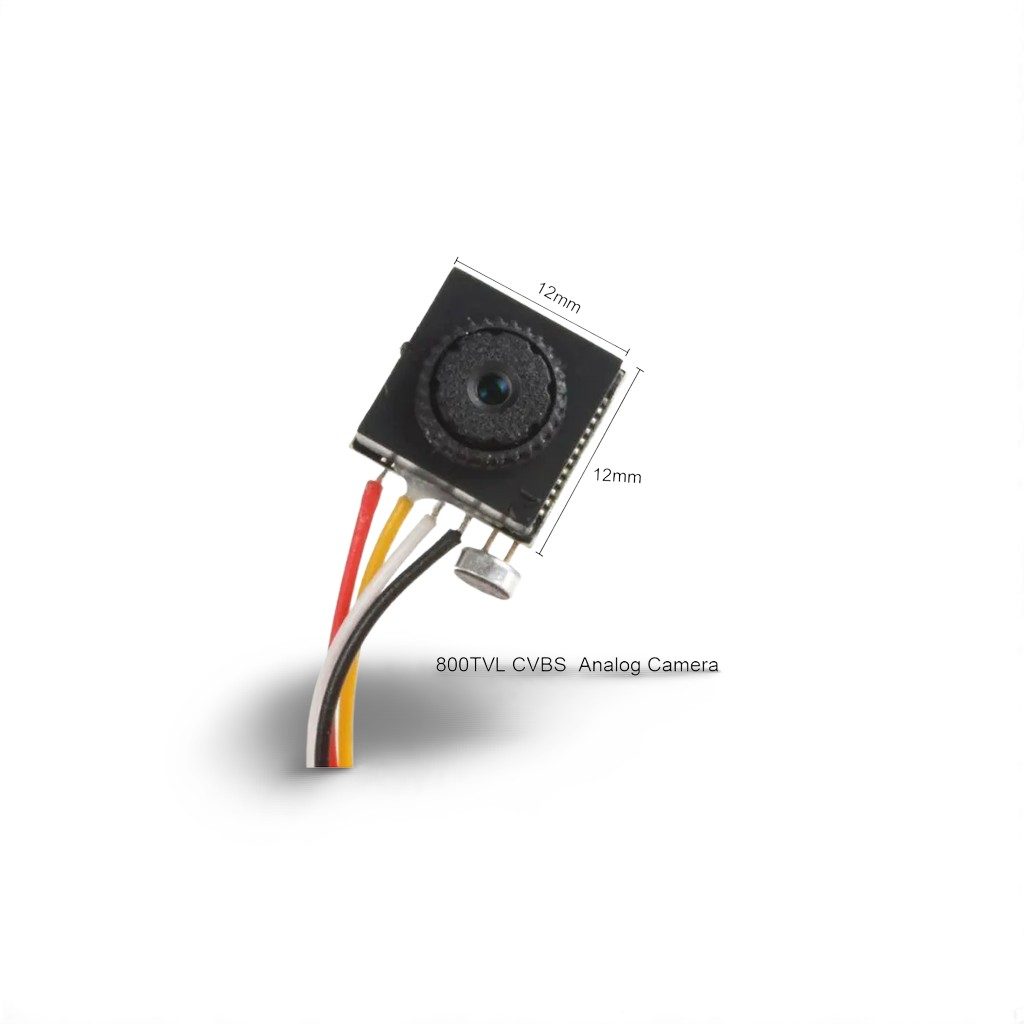

CVBS 5×5 Mini CCTV Security Camera 800tvl CMOS Home Video Audio Analog Camera AV Output

Mini CCTV Security Cameras

Technical parameters:

Pickup device: Color

Horizontal resolution: 800TVL

System format: PAL/NTSC PAL ( H X V ): 512X 582 NTSC ( H X V ): 542 X 492

Electronic shutter: PAL= 1/50 – 1/100,000 seconds NTSCL= 1/60 – 1/120,000 seconds

Minimum illumination: 0.1Lux (F: 1.2)

SNR(Signal to Noise Ratio): > 48dB (automatic gain closed)

Gamma: 0.45

Backlight compensation: Auto

Lens: Original lens 3.6mm selective

Automatic gain

Automatic white balance

Lens installation: C/CS

Video output: 1 Vp-p, 75Ω

Power input: DC 9V to 12V

Applications: Widely used for Home, Office, helicopters and other aerial aircraft, as son on

Features: Clean and fine image, vivid picture quality, low illumination, wide voltage and low power consumption
